Products description

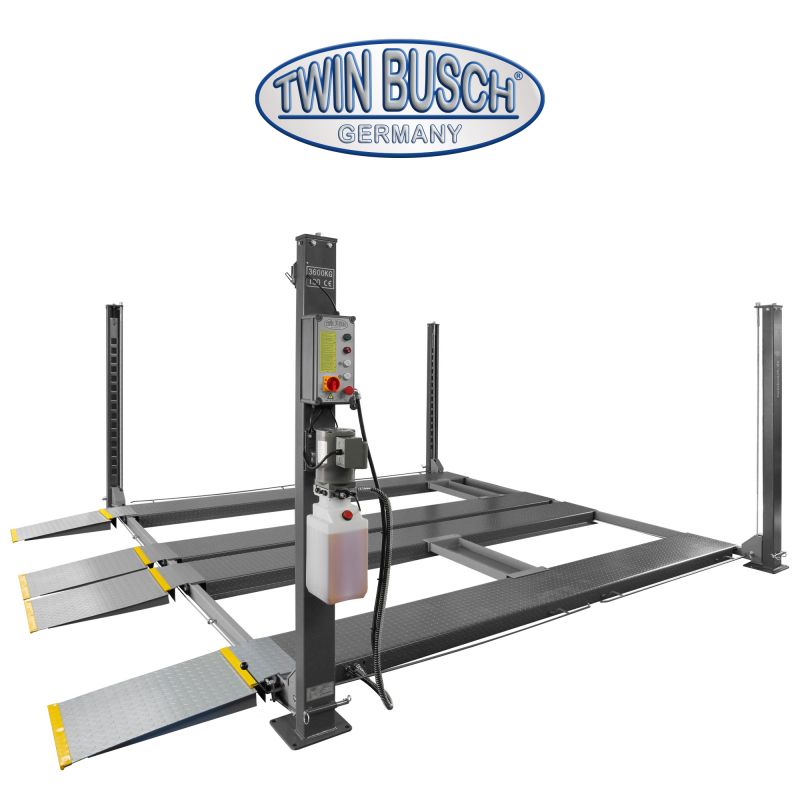

Four post parking lift.
Twinbusch Workshop Quality

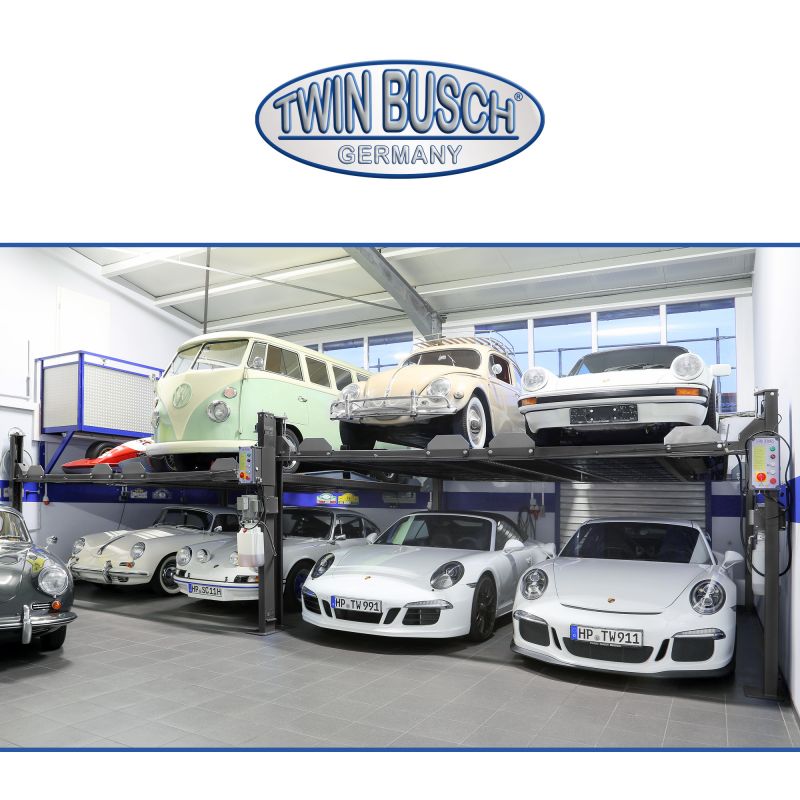

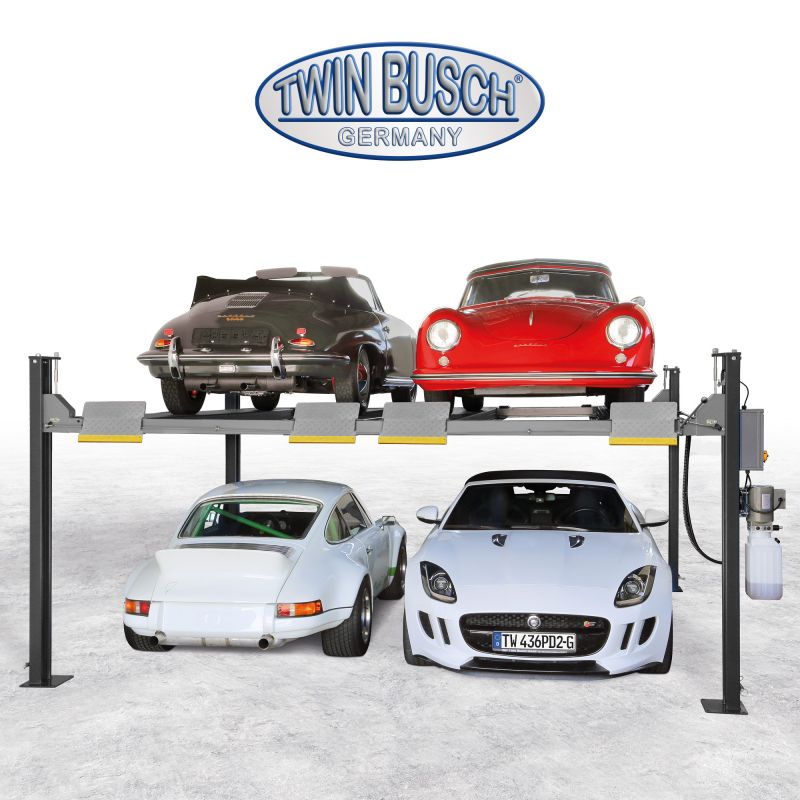

The practical 4 post double parking lift.

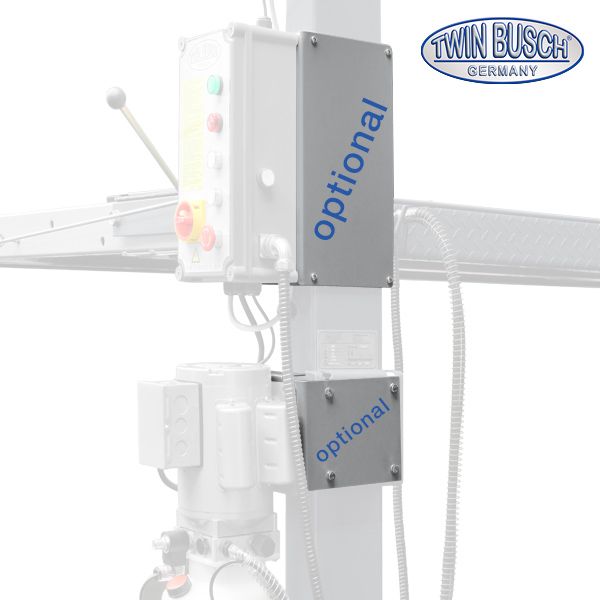

With its optional mobile kit you can use this lift in very tight spaces, and with the optional offset motor brackets you can assemble more lifts along side of each other.
| |||||
 | Features |
- Top built quality with CE-certificate
- Manufactured according to ISO 9001
- Hydraulic overfl ow valve
- 1 hydraulic cylinder mounted under runway cares for a strong lifting and lowering

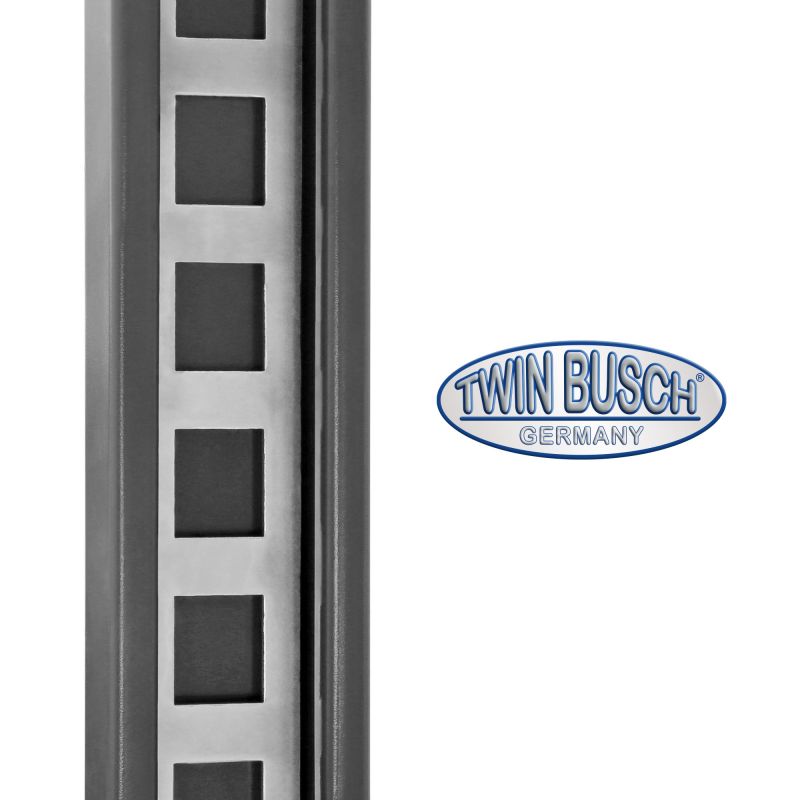

- Mechanical security locking system

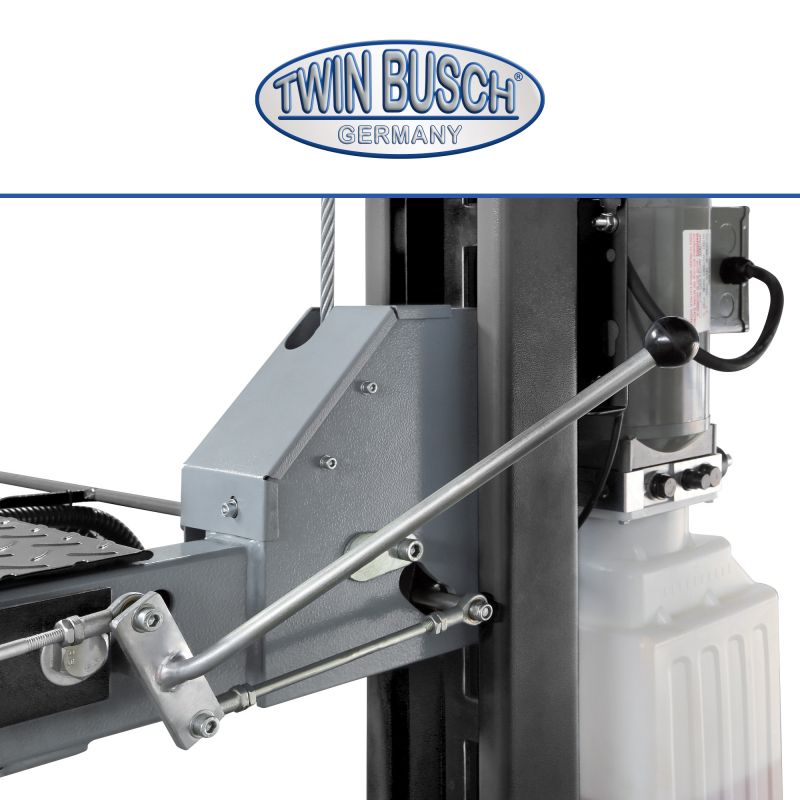

- Manual safety-lock release
- Slackline and cable protection

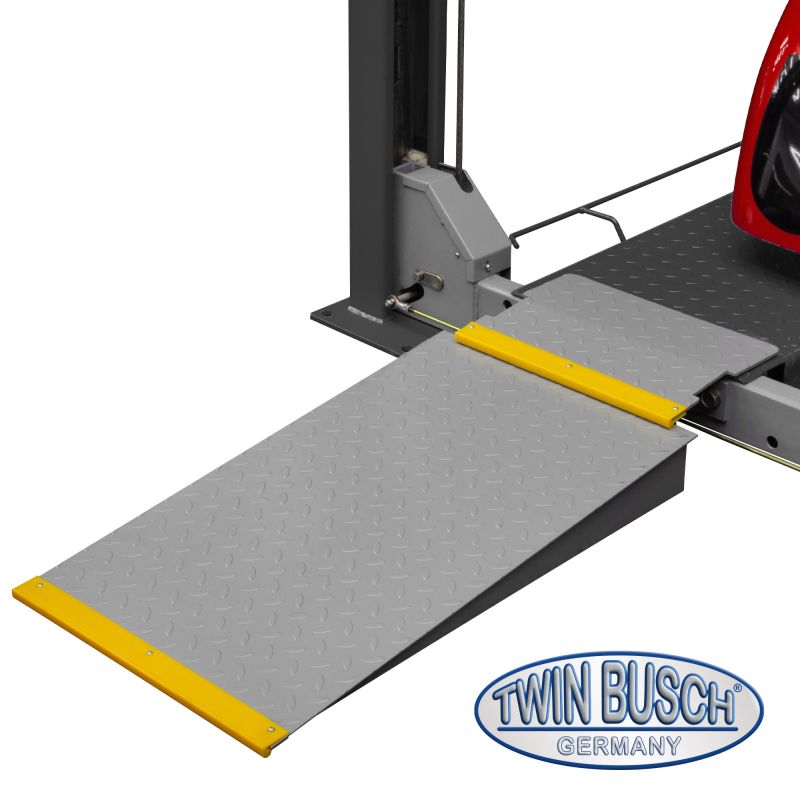

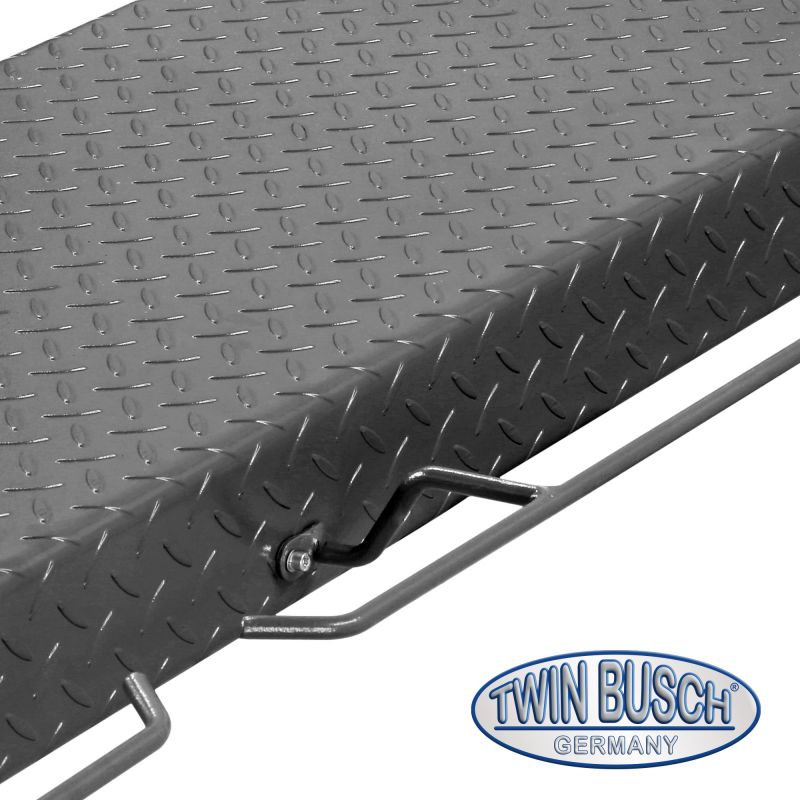

- Platform with roll on ramp and roll off protection
- Roll on-off protection
- Foot protection
- Acoustic warning signal
 | Technical Data |
| Lifting capacity | 3600 kg |
| Max lifting height | 1850 mm |
| Runway length | 4095 mm |
| Runway width | 470 mm |
| Min height | 112 mm |
| Lifting/lowering time | 45/30 sec. |
| Power supply | 230V |
| Motor power | 2,2 kW |
| Fuse protection | 16 A |
| Weight | 1400 kg |
 | TW 436P-D2 - Overview |

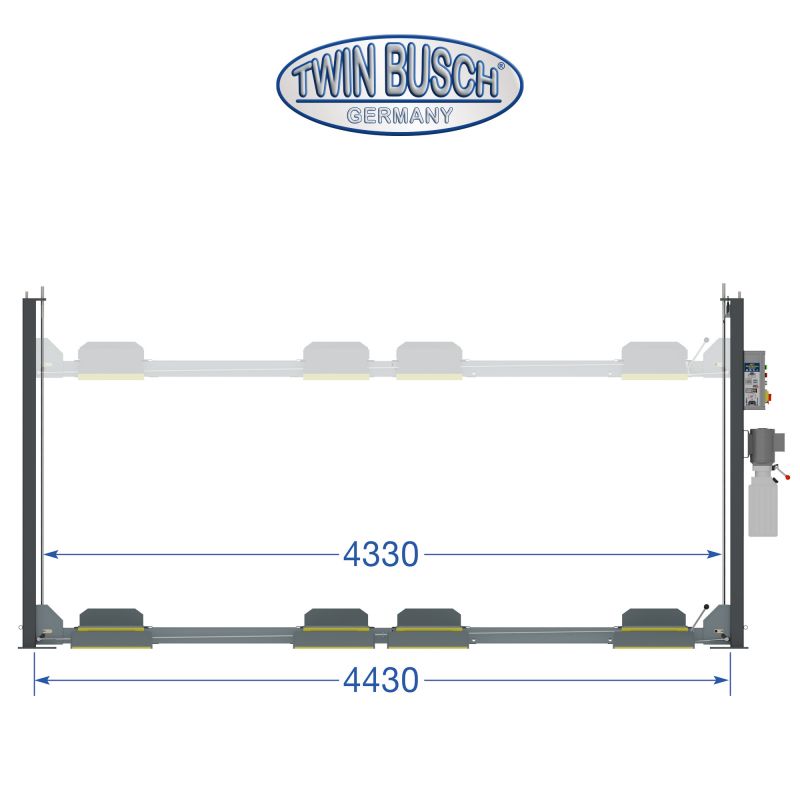

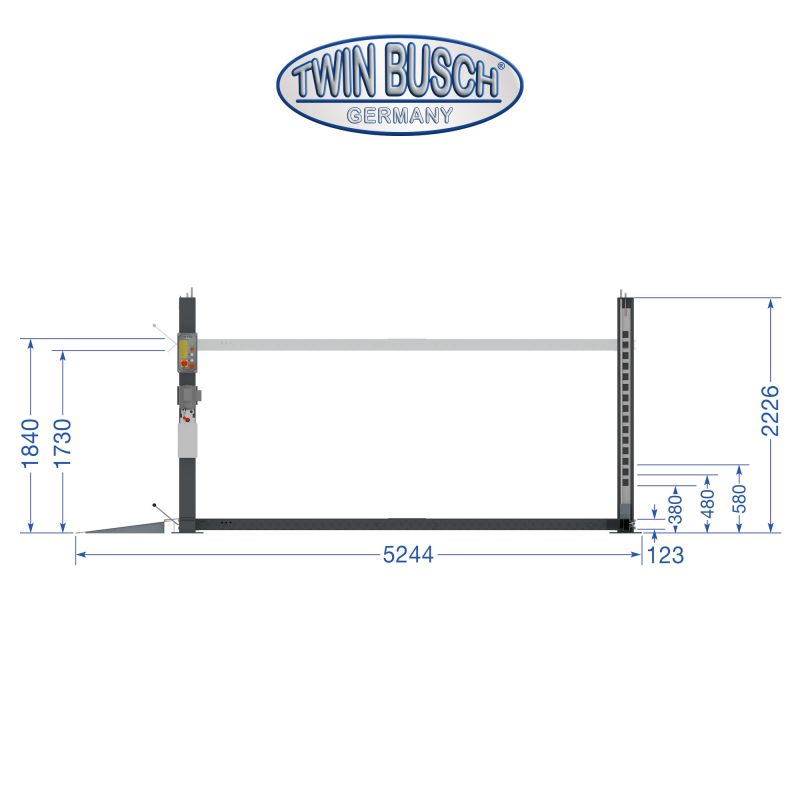

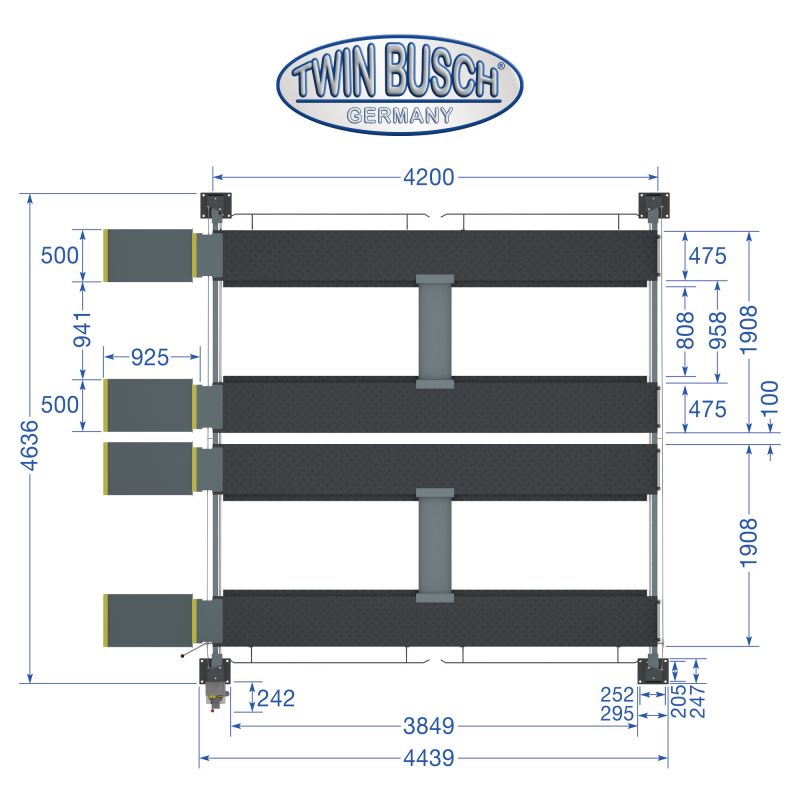

| Product dimensions |
 | Delivery contents |

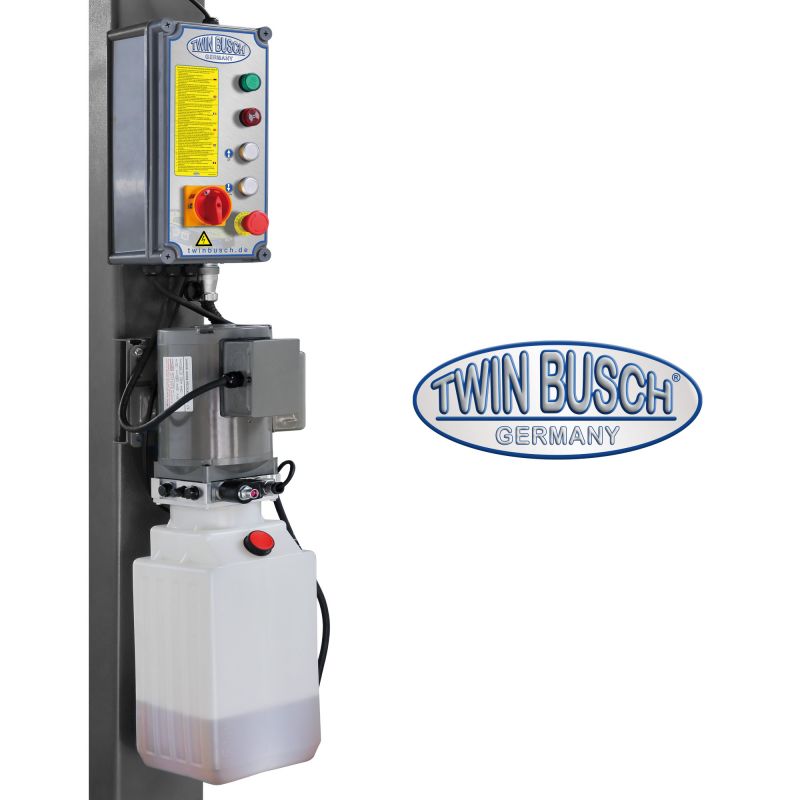

- Four Post Lift incl. motor unit
- CE-certificate

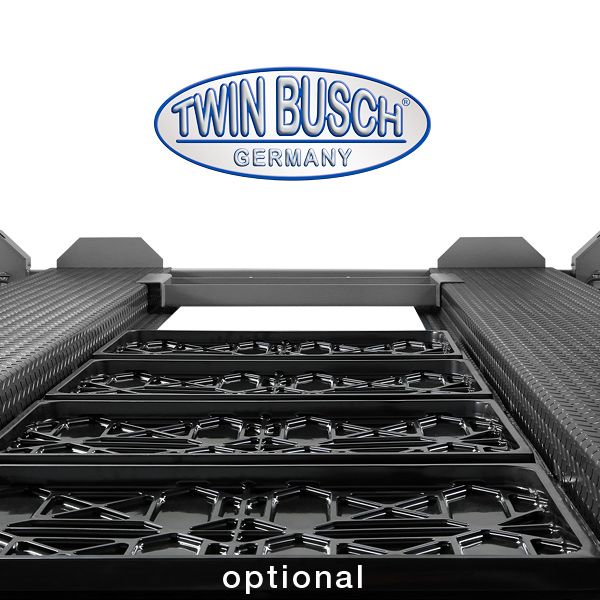

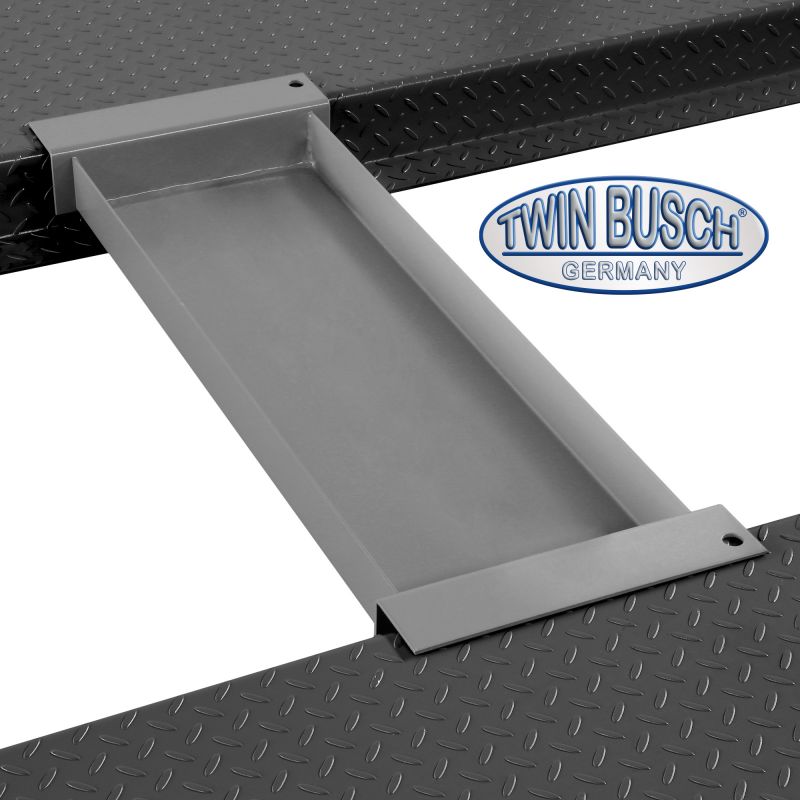

- Drip tray optional - 25 ¤ pro Item

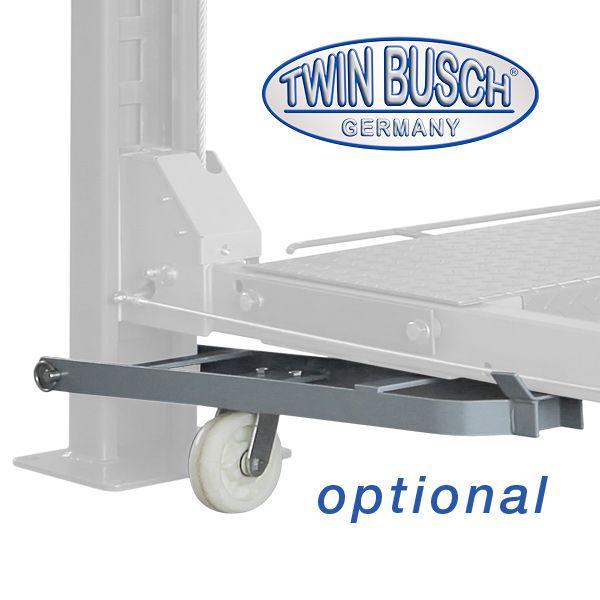

- Mobile kit optional

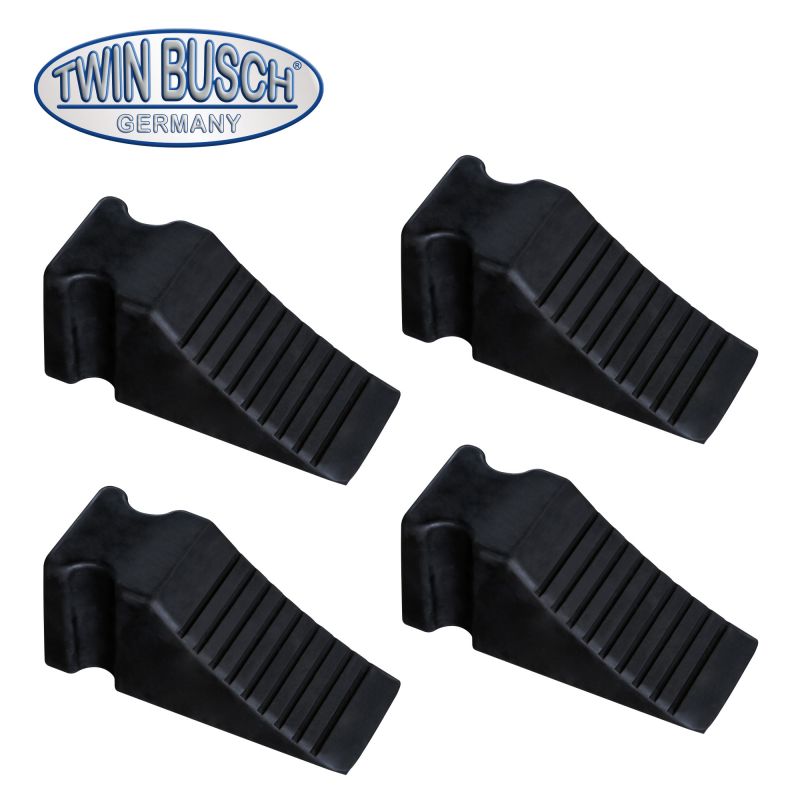

- Wheel chocks included (4 pcs.)
- Oil not included – can be optionally ordered
- Car not included
 | Shipping information |
- The lift will arrive in a transport frame.
